Spatial Vector Operation

library(sf)
library(dplyr)
library(ggplot2)

Thematic queries

  • SQL queries can be performed with file import
tlm3d_path <- "data/Spatial_Analysis_II/swiss_TLM3D.gpkg"

tlm_seen <- read_sf(
  tlm3d_path,
  query = "SELECT objektart, geom FROM tlm_bb WHERE objektart = 'Stehende Gewaesser'"
  )
  • However, datasets can also be queried after import using data.frame methods (such as [ or dplyr::filter)
tlm_bb <- read_sf(tlm3d_path, "tlm_bb")

# Subsetting with base-R
tlm_seen <- tlm_bb[tlm_bb$objektart == "Stehende Gewaesser", ]

# Subsetting using dplyr::filter
tlm_seen <- filter(tlm_bb, objektart == "Stehende Gewaesser")

Spatial queries using binary predicate functions

Take the following example:

Select all forests in the canton of Luzern

  • Spatial query functions include: st_contains(), st_contains(), st_contains(), st_contains(), and many more
  • These spatial queries are called geometric binary predicates
  • This family of functions return so called sparse matrices: a list the same length as x, which, for each element in x, contains the indices of y where the condition is met. For example:
  • They could return cross matrices, but these usually have a larger memory, since they have are \(x \times y\) in size

luzern <- read_sf("data/Spatial_Analysis_II/swissBOUNDARIES3D.gpkg")

tlm_wald <- filter(tlm_bb, objektart == "Wald")

# The dataset already has this crs (2056), but apparently
# does not realize this
tlm_wald <- st_set_crs(tlm_wald, 2056)


query_res <- st_intersects(tlm_wald, luzern)

# Note the length of the output equals nrow(tlm_wald)
query_res
Sparse geometry binary predicate list of length 8096, where the
predicate was `intersects'
first 10 elements:
 1: (empty)
 2: (empty)
 3: (empty)
 4: (empty)
 5: (empty)
 6: (empty)
 7: (empty)
 8: (empty)
 9: (empty)
 10: (empty)
  • (The first 10 elements are empty, because these are not within Luzern)
  • This list can be used to subset x (TRUE where the list is not empty):

# Note the use of lenghts (with an s) to get the length of each element in the
# list
wald_luzern <- tlm_wald[lengths(query_res) > 0,]


ggplot(luzern) +
  geom_sf(data = wald_luzern, fill = "darkgreen") +
  geom_sf(color = "red", fill = NA)

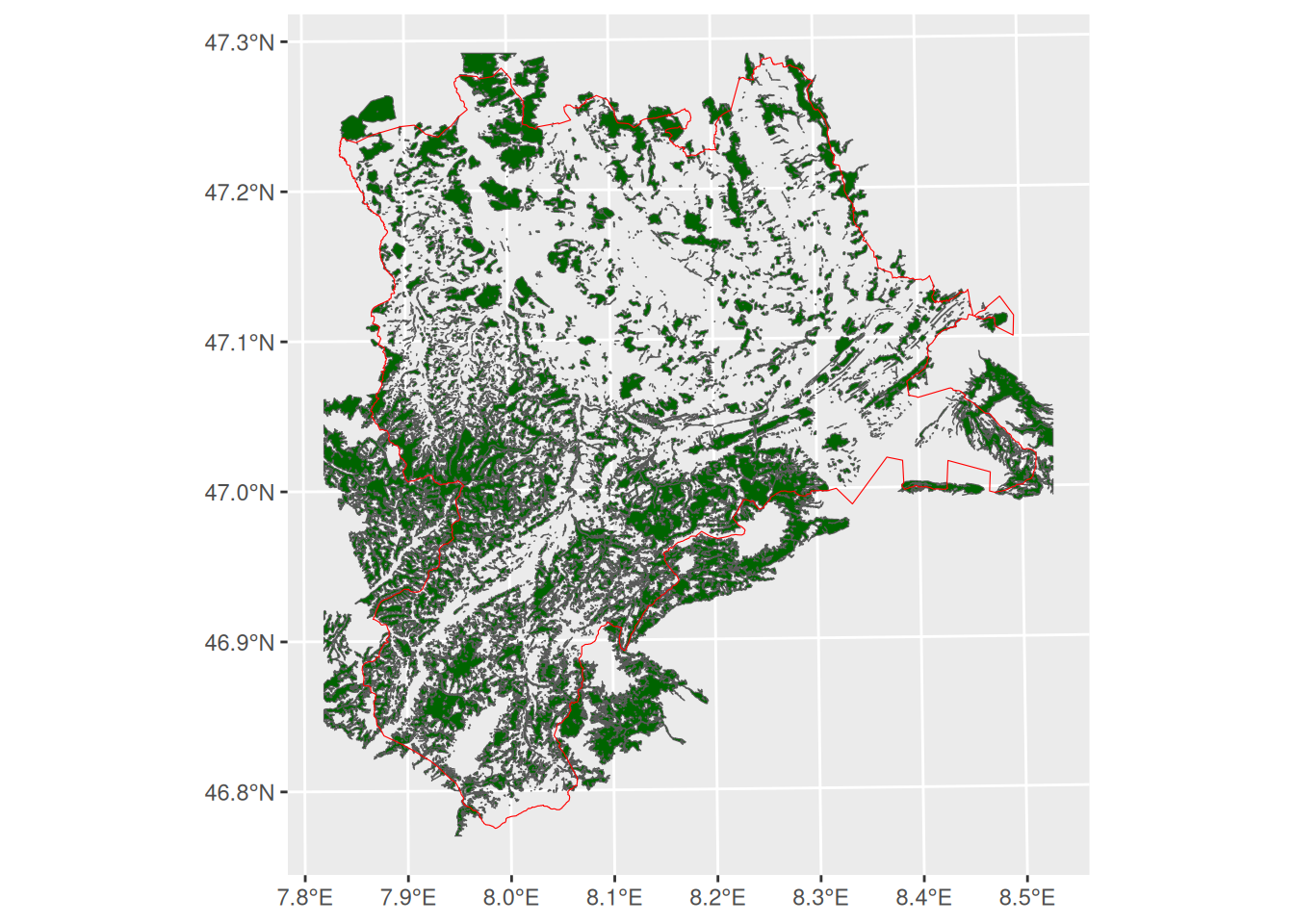

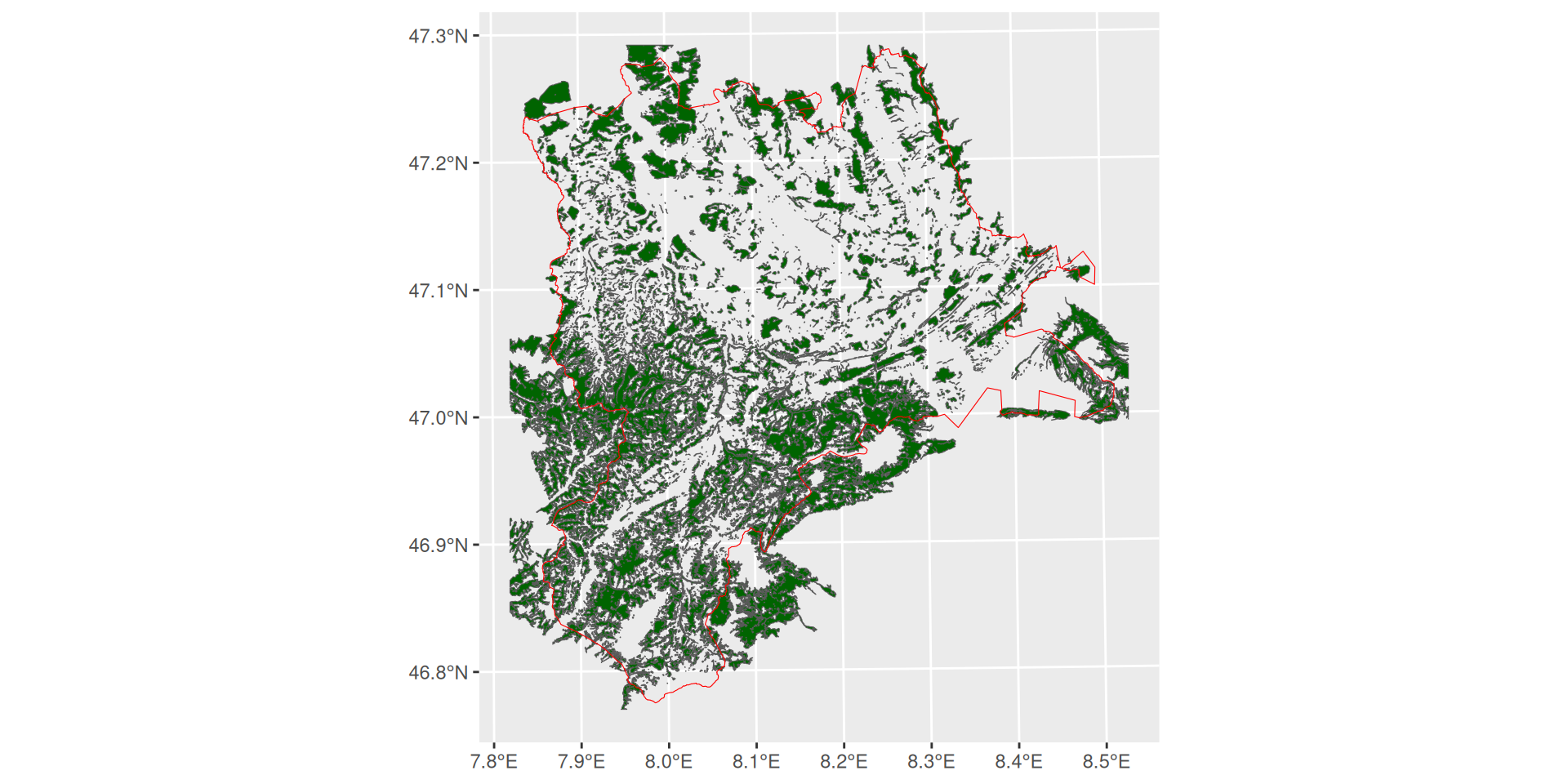

Figure 3.1: Note how some forests are outside the canton’s border. This is the nature of st_intersects. If even a small part of a forest feature is within Luzern, this feature intersects Luzern and is therefore retained. To query only forests that are completly within Luzern, use st_within().

Spatial queries using [ or st_filter

  • The code above was for illustration purposes. The code can be written more concise:
# using sf-methods in base-R
tlm_wald[luzern,, op = st_intersects]

# using st_filter
st_filter(tlm_wald, luzern, .predicate = st_intersects)
  • The default value for op and .predicate is st_intersects, so these arguments could also have been omitted

Overlay Analysis

  • In the example illustrated in Figure 3.1, we have the choice of subsetting forests that either intersect Luzern ever so slightly (st_intersects), or that lie completely within Luzern (st_within).
  • Depending on the question, both options can be unsatisfactory (e.g. if the question was Which percentage of Luzern is covered by forest?)
  • For some cases, it might be necessary to “cut” the forest area at the cantons border
  • This can be achieved with st_intersection (which is different from intersects)
  • There are several other functions that work on pairs of geometries. See Geometric operations on pairs of simple feature geometry sets
  • There are even more functions that work on single geometries, e.g. st_buffer. See Geometric unary operations on simple feature geometry sets

library(glue)
library(scales)
wald_luzern2 <- st_intersection(luzern, wald_luzern)

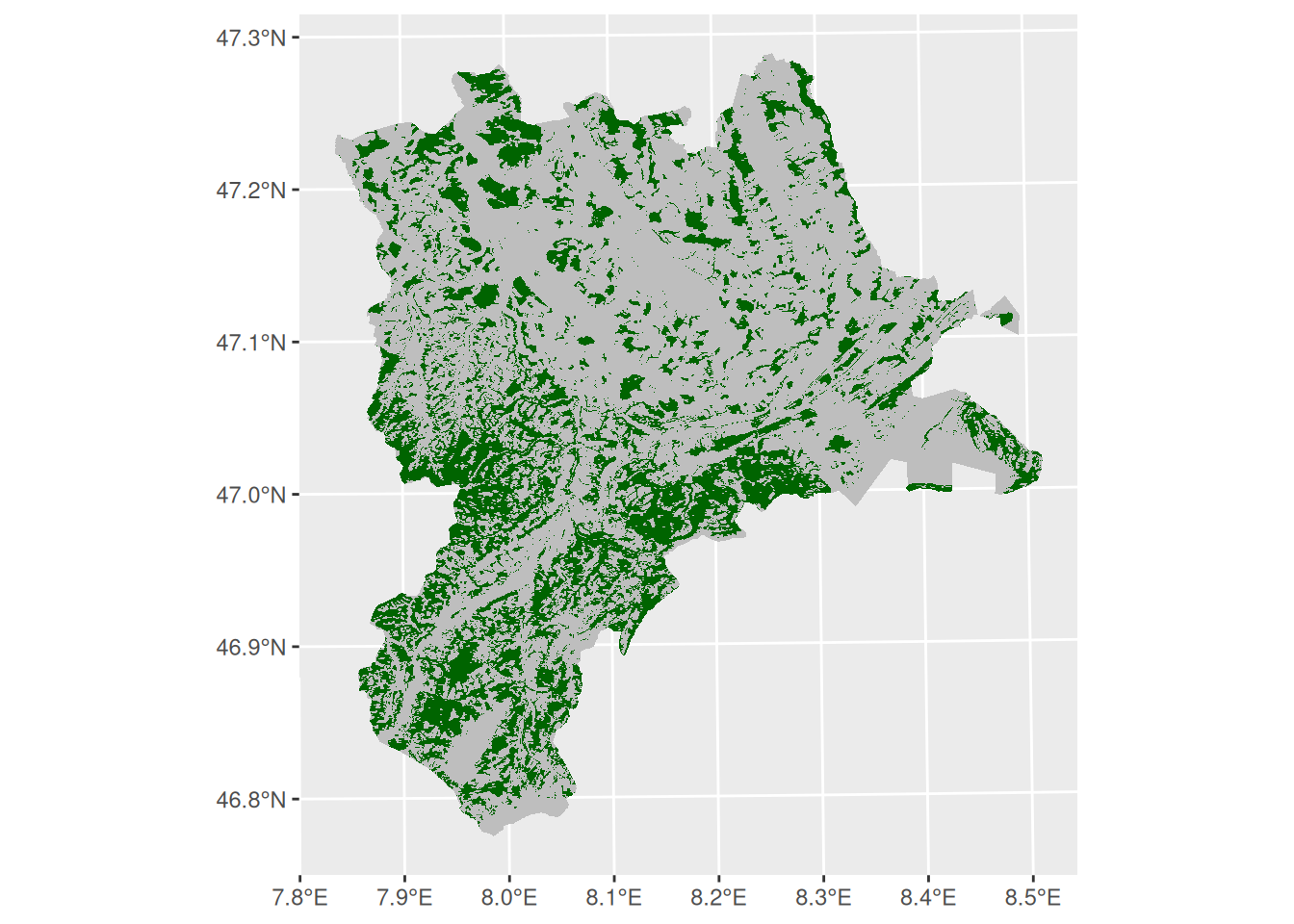

ggplot(luzern) +
  geom_sf(fill = "gray", color = NA) +
  geom_sf(data = wald_luzern2, fill = "darkgreen", color = NA)

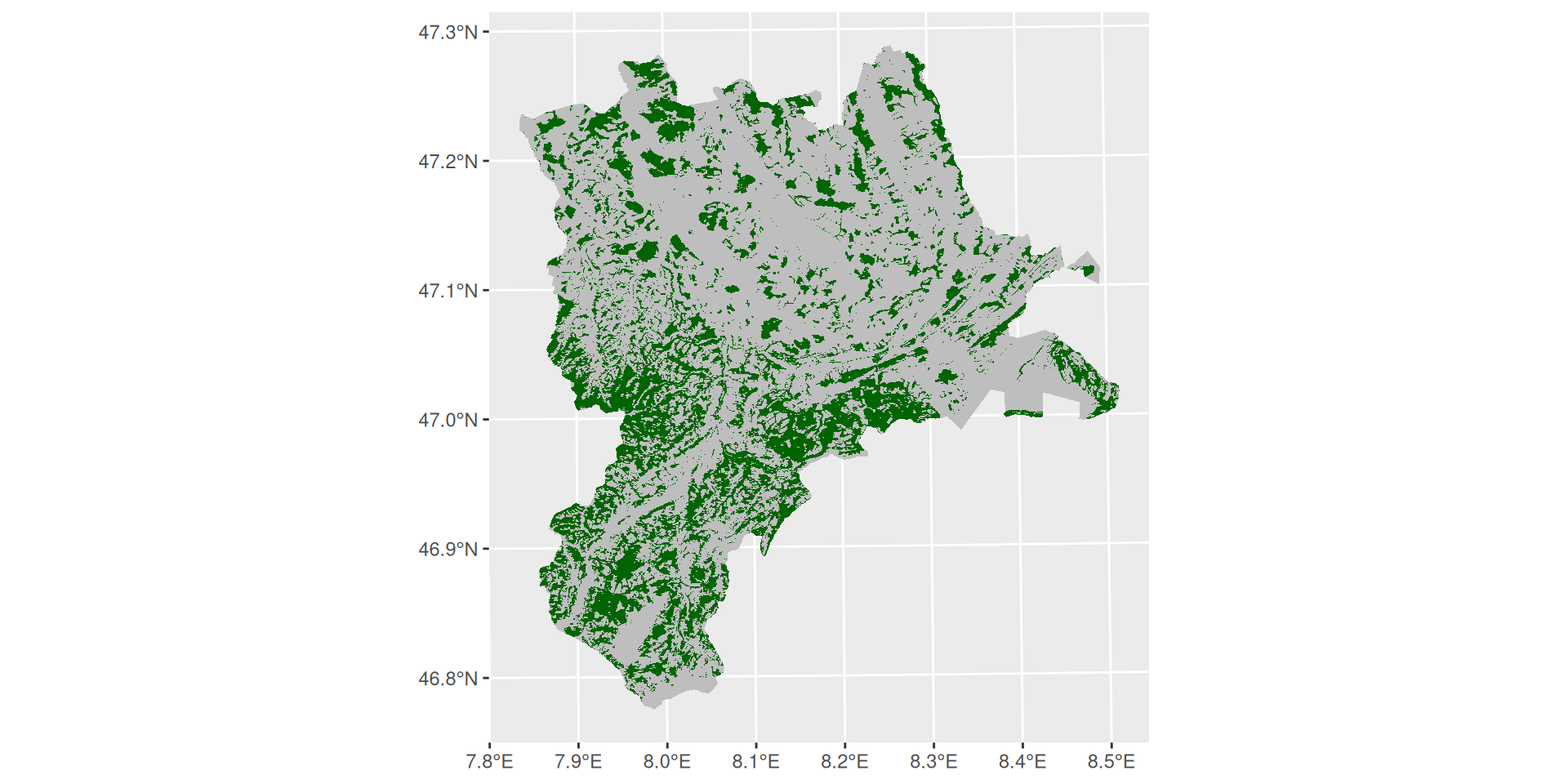

  • Now, it’s possible to compute the area of Luzern and the forest that intersects Luzern using the function st_area.
  • There are several functions to compute geometric measurements of sf-objects.
sum(st_area(wald_luzern2))/st_area(luzern)
0.2721733 [1]

🪕 Tasks

From the exercise in Spatial Analysis I, solve the following tasks using R:

  • Task 2: Thematic Selections (Select by Attributes)
  • Task 3: Exporting Selected Features to a New Layer sf object
  • Task 6: Intersect (Intersection)
  • Task 8: Buffer
  • Task 9: Spatial Selection (Select by Location)
